NEW!!! - Modifications to my frame and suspension

This is a quick series of photos which I will add substantial text and explanation to later.

The photos are a result of our decision to replace the BMW frame with a reinforced BMW frame, the replacement of the stock Dakar suspension with a 250mm WP USD suspension, and major changes to the bike's controls and rider cockpit.

I just got these back and wanted to put them up - so here they are. As is the standard on my site, clicking on a file will take you to the original large format picture - available later when I have more time and organize the pictures more.

Sorry that this page takes long to load as I just put them all up on this page..

Regards,

David H. Park
david@dhpmoto.com

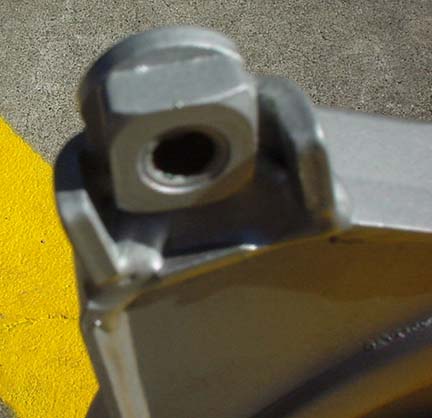

Frame - sub-frame mounting nut (pre-reinforcement), top view

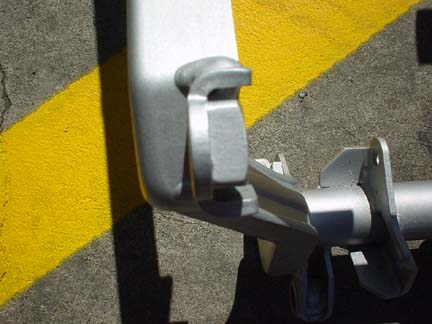

Frame - sub-frame mounting nut (pre-reinforcement), inside view

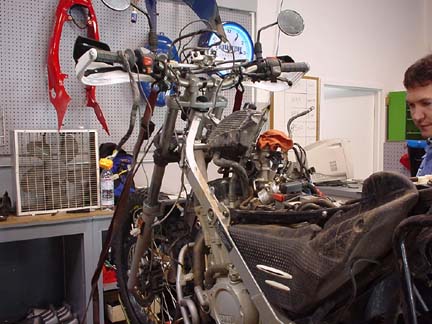

Jim - Getting Ready for Disassembly

Jim - the bike wizard - taking it apart

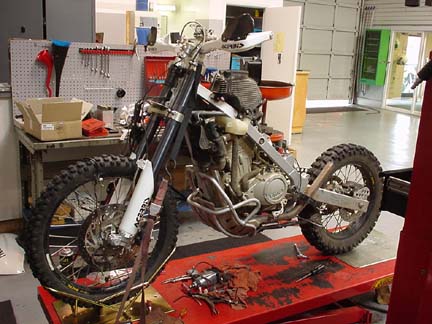

Bike - left

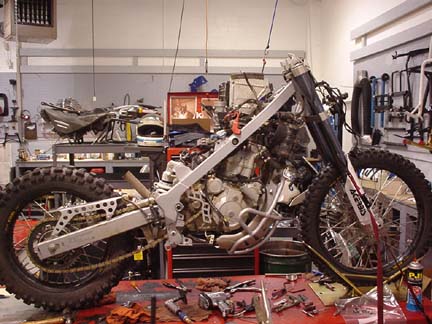

Bike - right

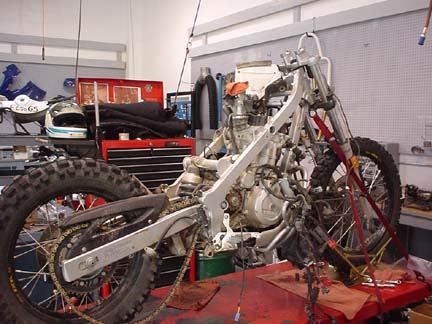

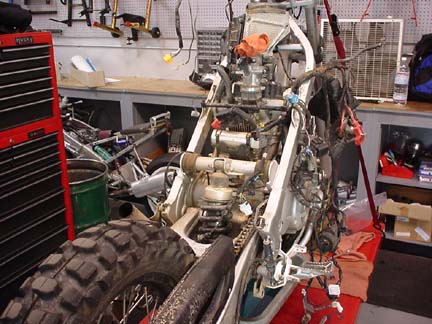

Frame only - from back

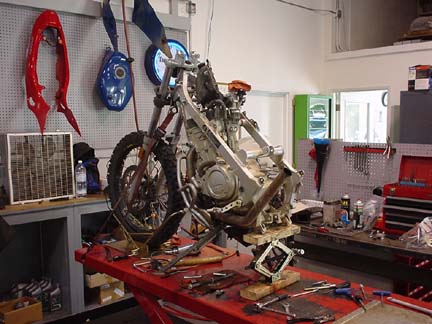

Frame only - from side

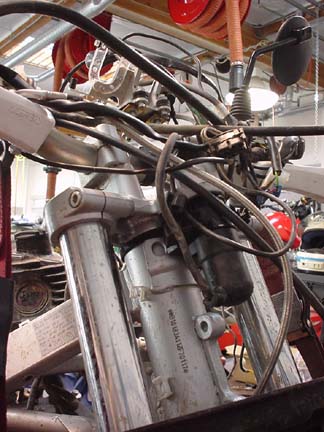

Frame only - Top clamp and front stem

Front control cables - standard setup

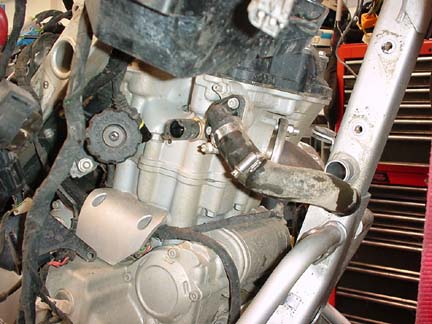

Engine hoses - closeup

I'm manufacturing replacement hoses with reinforcement from Krontec.

Disassembly - without the rear sub-frame and wheel

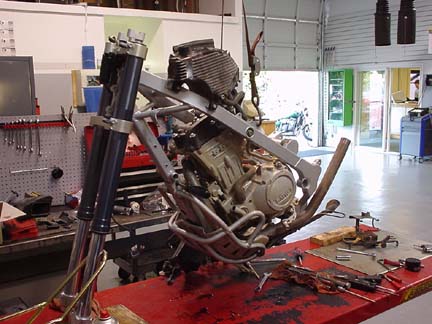

front - WP 250mm USD suspension in new frame

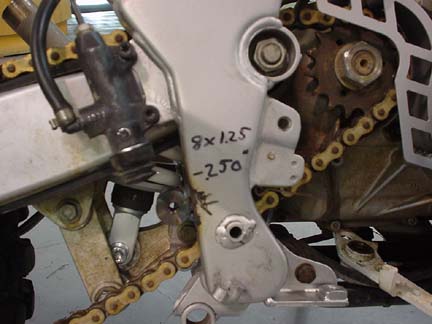

Chain Roller

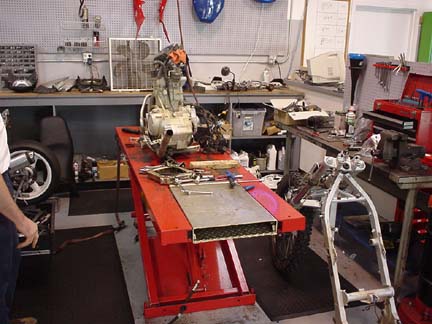

Engine Only !!! - This is all that was left...

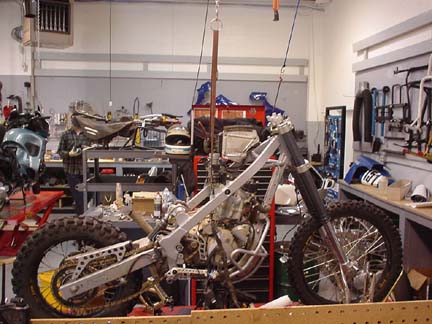

rear - WP 250mm USD suspension in new frame

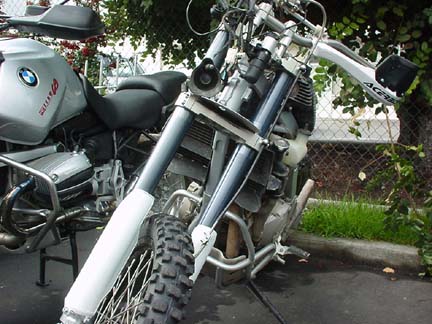

Frontal view - suspension length
