R900RR Cockpit - Detailed Photos from the 2001 Barcelona Motorcycle show

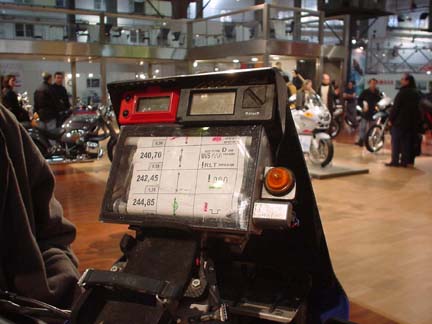

Picture 1 - Rider's View

The BIG roadbook is marked by the rider for turn and course information.
The boxes at the top are speed, course, and other readouts while the orange light
(I think) is for shift out indication. The GPS and timer goes in the center rubber mount.

(You can't see it in this picture but part of the front of the fairing is custom carbon fiber not plastic)

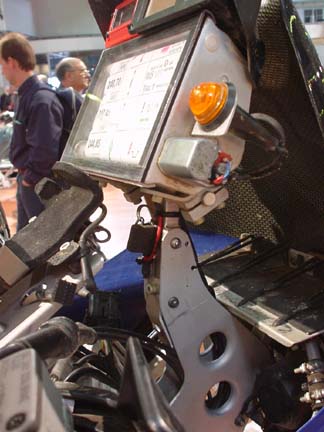

Picture 2 - Cockpit (closeup)

Simply another view of the cockpit instrumentation.
Notice the sunscreen lip on top of the readouts. Important!

Picture 3 - Mounting perch

This was one of the impressive pieces of fabrication on the bike. Look at the custom mount
for the roadbook and cockpit instrumentation. It's very solid construction to say the least.
In the background you can see the carbon fiber weave of the front windscreen.

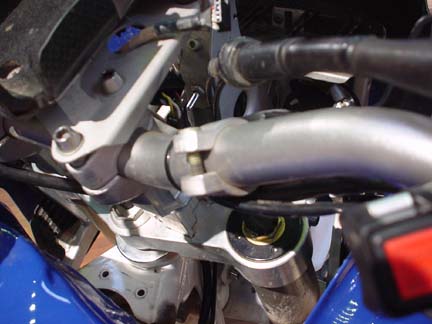

Picture 4 - Mounting perch

In this picture you can clearly see the amount of heavy-duty hardware that goes into attaching
the instrumentation to the top of the triple clamp. Not only must this be strong but it has to be
easy to disassemble quickly for access to the suspension components.

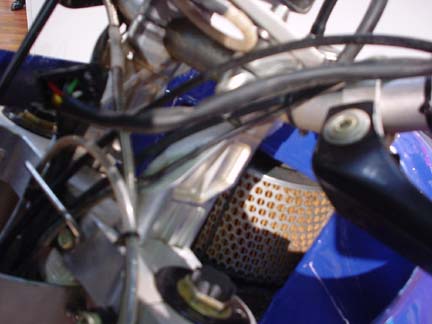

Picture 5 - Air filter

This boxer has no problems breathing at all. The air filter is completely exposed to fully
ventilate the engine. Of course being factory supported means getting a new one every night!

For nice details look at the small cable routing clamps and tie downs. No detail is spared.

Also look at the custom pieces which raise the handlebar from the triple clamps, very nice!
