R900RR Radiator and cooling system - Detailed Photos from the 2001 Barcelona Motorcycle show
Picture 1 - Radiator guards from front/underneath
Big twin radiators are underneath with the appropriate
screens.
Note the thick light covers and WP suspension.

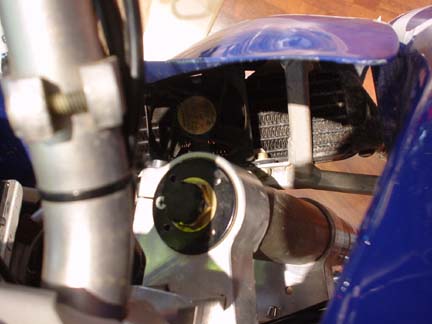

Picture 2 - Cooling fan, top-down view
If you don't look for it you won't see it. There is a large
electric fan for cooling
on the top of the right radiator (only right not left). It's most likely controlled
by one
of the many toggle switches either on the handlebars but most likely the one
hidden
behind the control mounting arm. There is a steel brace which adds to protect
the
radiator in case of frontal impact/collision - can you see it?
