R900RR Front Wheel - Detailed Photos from the 2001 Barcelona Motorcycle show

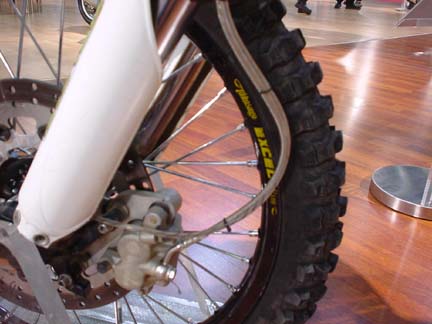

Picture 1 - brake lines at the front

Steel braided brake lines are standard, the tie down were nicely done.
Does anyone know what that other tube is for? It's clear and not a cable.

Excel rims with Michellin Desert tires complement the picture.

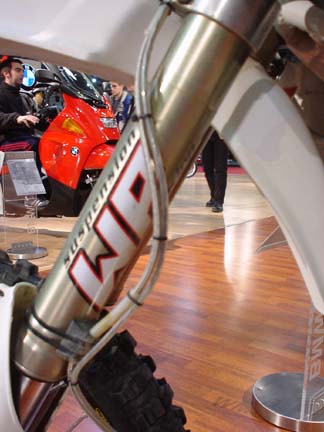

Picture 2 - Side View

The WP suspension with cables. Again, look at the nice attachment to the fork
and the care of the tiedowns.

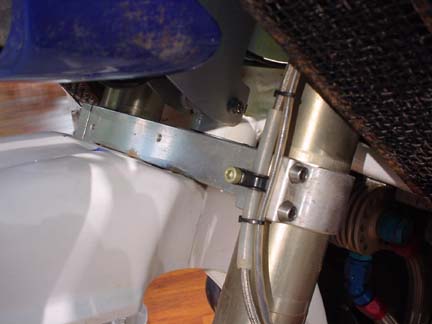

Picture 3 - lower fork brace

I love the machining of this part. There is a clampdown on the lower fork brace
through which the brake line goes - within a plastic tube to avoid chaffing.
No-nonsense front fender simply attaches to lower fork as well.

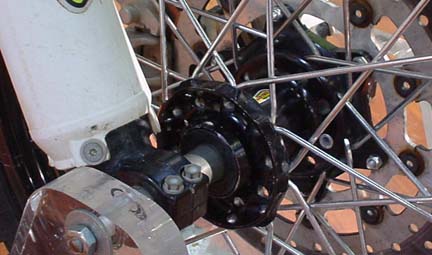

Picture 4 - Talon hubs

Talon hubs were used on the R900RR.
